Part Number:
0553650011
Status:
Active
Overview: compactflash
Description: 1.27mm (.050") CF Card Ejector: Right Side Button, Push-Push Type
Documents:
3D Model Product Specification PS-55359-016 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-55359-013 (PDF)
General
Product Family Memory Card Sockets
Series 55365
Button Type Push-Push
Component Type Ejector (Host)
Overview compactflash
Product Name CompactFlash
Type I, II
Physical
Card Detection Switch N/A
Circuits (Loaded) N/A
Color - Resin Black
Durability (mating cycles max) Contact Molex
Ejector Button Side Right
Entry Angle N/A
Keying to Mating Part None
Material - Resin Polycarbonate
PCB Locator No
PCB Mounting Side Normal
PCB Retention N/A
Packaging Type Tray
Pitch - Mating Interface (in) 0.050 In
Pitch - Mating Interface (mm) 1.27 mm
Pitch - Term. Interface (in) 0.000 In
Pitch - Term. Interface (mm) 0.00 mm
Ports 1
Temperature Range - Operating -20°C to +90°C
Electrical
Current - Maximum per Contact N/A
Shielded Yes
Voltage - Maximum N/A
Material Info
Reference - Drawing Numbers
Product Specification PS-55359-013, PS-55359-016, RPS-55358-004,
RPS-55359-001

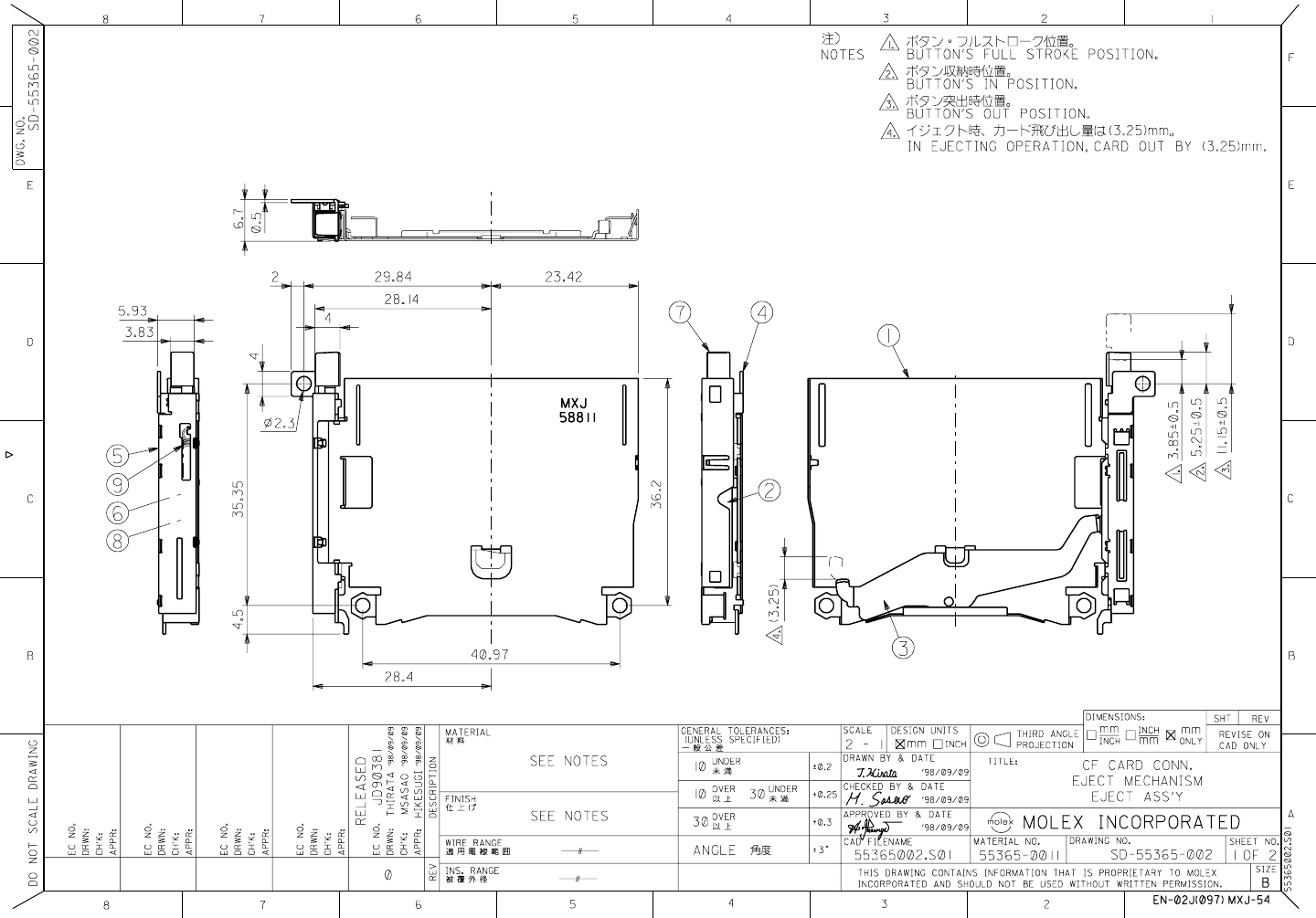

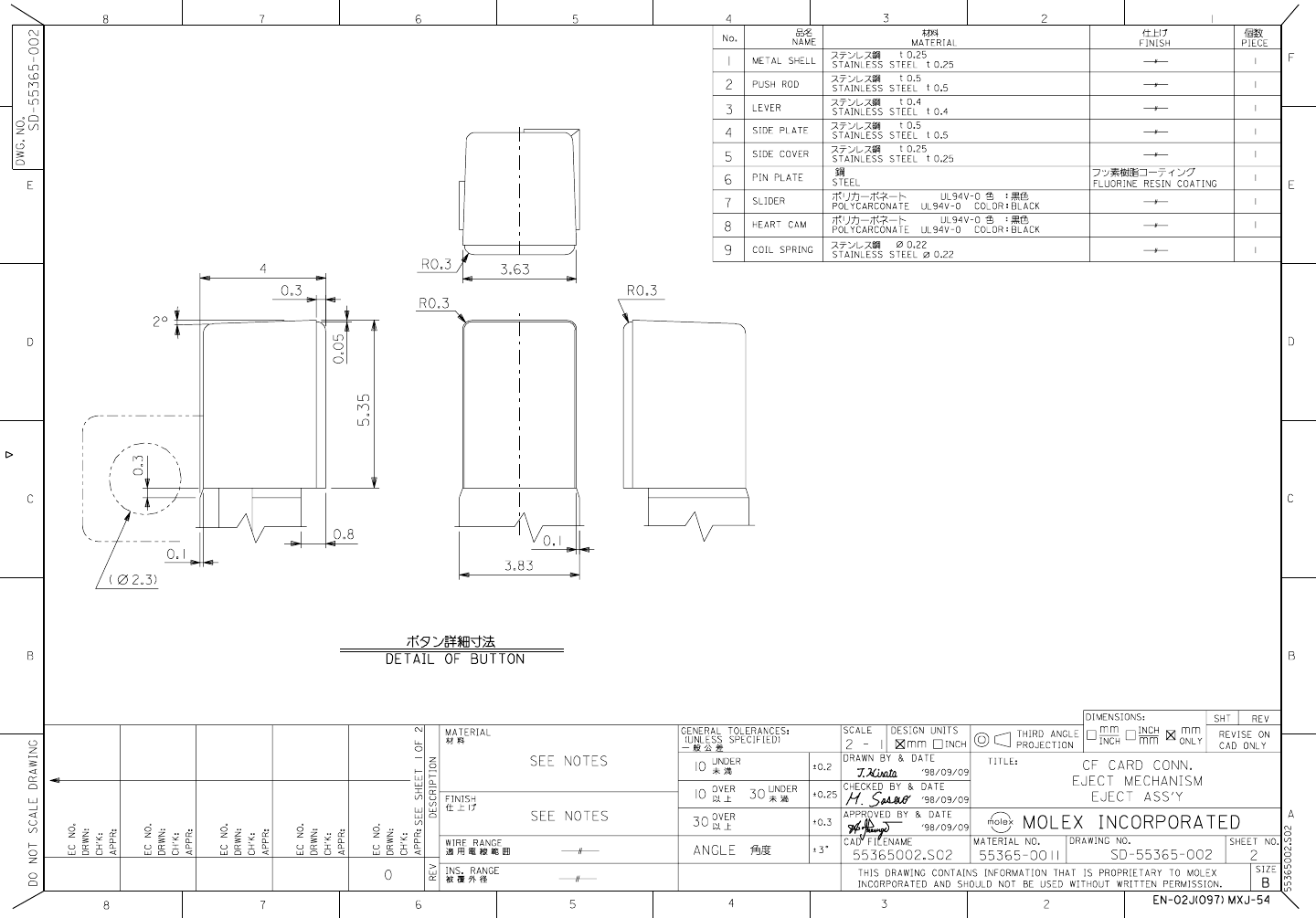

Sales Drawing SD-55365-002
Series
image - Reference only
EU RoHS China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
55365Series
Use With
55359
